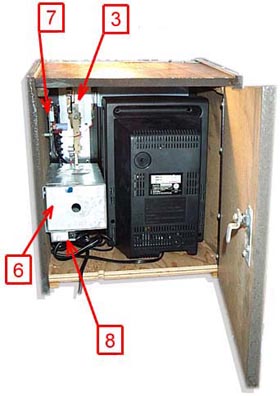

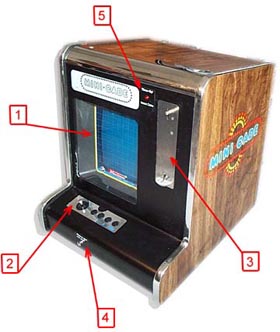

The Mini-Cade is made of several parts: The Vectrex [1] in itself is enclosed in the wooden box. 4 holes have been drilled inside the black sheet metal for the lever and the 4 buttons to pass through. A real Vectrex pad is hidden under. The pad label is also a new one with a chrome steel color and the figures 1,2,3 and fire written under the buttons. A coin-op device [3] is located on the right side of the system. This one is linked to the red led [5] and to a Time-op PCB [7].
How it's operating: The system is turned on when the back door is closed. Like in a fridge, there is a button [8] detecting weither the door is or not closed. When the system is turned on, the red led "Time-op" lights [5]. The Vectrex is normaly working but the pad is not active. Actually, the link between the pad and the Vectrex has been modified: there is a Timer PCB placed between them both. The pad remains inactive as long as no coin has been inserted in the coin op. The red led informs the player that he must insert a quarter to play. When the coin is inserted, the red led is switched off and the pad is "free"...the player can take the control of the Minestorm ship. He can play during 1 minute and 30 seconds with the original setting. During this time, the player can even reset his game by pressing a small button [4] on the front. There is no lives limitation but only a time limitation.
How the Vectrex Mini Cade is operating
The Mini-Cade system is turned on when the back door is closed. Like in a fridge, there is a button detecting weither the door is or not closed. When the system is turned on, the red led "Time-op" lights. The Vectrex is normaly working but the pad is not active. Actually, the link between the pad and the Vectrex has been modified: there is a Timer PCB placed between them both.
The pad remains inactive as long as no coin has been inserted in the coin op. The red led informs the player that he must insert a quarter to play. When the coin is inserted, the red led is switched off and the pad is "free"...the player can take the control of the Minestorm ship. He can play during 1 minute and 30 seconds with the original setting. During this time, the player can even reset his game by pressing a small button on the front. There is no lives limitation but only a time limitation. |
|
After 1 minute and 30 seconds of intensive play, the red led starts flashing to inform the player that he has to insert a new coin if he wants to go on playing. After 10 seconds, the red led remains lit and the pad is not active anymore. Imagine how hard it must be to insert a coin while playing Minestorm at level 13 with both hands on the controls ! Note that there is a copyright near the "Time-op" writing.

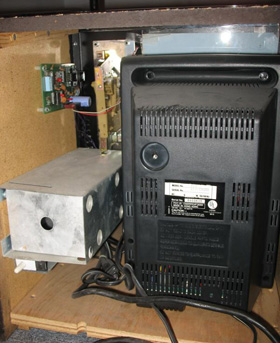

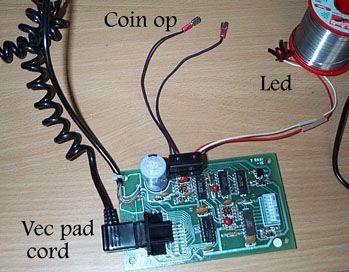

On the picture bellow, one can see the inside of the Mini-Cade, with the Time-op PCB linked to the coin-op (dark purple cables) and to the red led (white and red cables).
Inside the Mini-Cade
|
|

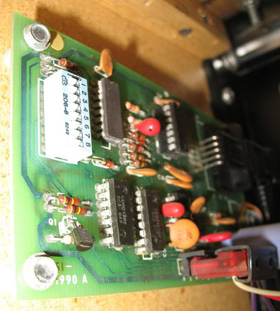

The pad is also linked to it by a 9 pin connector. The light blue rectangular parts on the Mini-Cade PCB is the timer setting switch. It seems to be a dedicated PCB.
|
There is a "copyright ESI 1982" written next to the front logo. On the back, one can see a new sticker placed on the GCE one. This system has serial number 10078 and the second one found has serial number 10076. Another serial number known is 10080, that one is owned by Chris (see photos bellow).
The ESI copyright on the Mini Cade Front |
The stickers on the Vectrex |
A funny system... just when you think you have it all in your Vectrex collection -

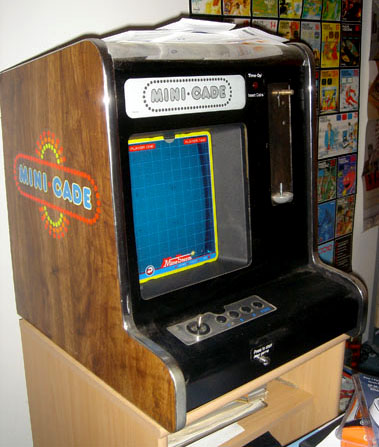

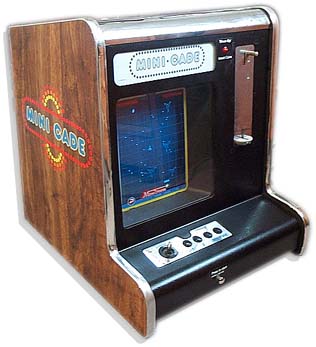

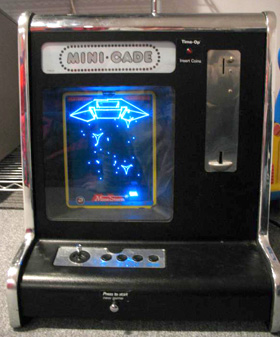

here are some more pictures just so that you don't miss it in case you come across one in a flea market ;)
The Mini Cade control pad
|
The Mini-Cade back with keys and back door |
Following Info & Pictures are from the Mini-Cade SN 013-10080
Many thanks to owner Chris for the permission to use the informations and photos.
Some background info about how the Mini-Cade was recovered, written by Chris the "Hounter", Oct 4, 2004
When I found the first Mini-Cade there was only one other known to exist and it had surfaced on eBay just a week prior. (That was Nicos MiniCade mentioned above). Shortly after finding the first one I described it to an umimpressed arcade collector who pointed me to a coin-op warehouse just blocks from my home. Sure enough there was another one there, arcade collectors cared little for them since they were useless as conversion or part-out machines. So for a while I had minicades #2 and #3, I unloaded #3 in a Vectrex newsgroup auction.
Initially it was assumed there was a Boston area source for Mini-Cades as they had only turned up here, the machinese themselves contain no real documentation other than "ESI copyright 1982". My coin-op seller had hazy recollections of seeing them at a tradeshow in the 80s as sort of a poor man's Asteroids cabinet. A few years back a collector in the midwest found 5 Mini-Cades in a warehouse sale, several were heavily damaged but I think most ended up with big-dog collectors.
All of the Mini-Cades found so far have been set up for playing minestorm although its possible to go inside the cab to add other carts and overlays. I use mine with a Sean Kelly Multi-Cart, I find the cab buttons to be better than holding the big controller for many games. One of my daydream ideas is to have a vec hombrewer make me a special minestorm cart with built in attract mode and on screen instructions.
